1. Usage and Application Range

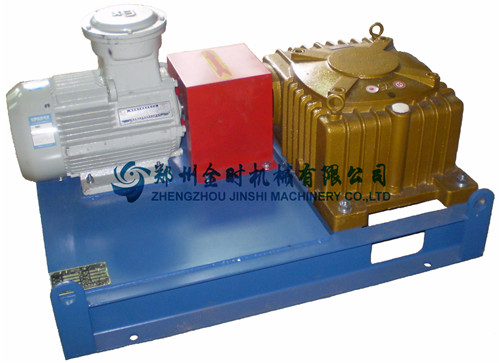

JZCQ series Vacuum Degasser is solids control equipment for treatment of gas cut drilling liquid. It can get rid of incursive gas quickly in drilling liquid to recover specific gravity of drilling liquid and stabilize its performance. It is indispensable equipment in exploratory well and drilling in ultradeep well and under-balanced drilling.
2. Product features
i. Capacity is large,gas removal efficiency is high and deal with gas mud serious and change it normal quickly.
ii. The vacuum pump is cooled with water loop and suitable for safer evacuation of combustible gas.
iii. The working condition can be saw from the viewing window,and the working condition can be adjusted by pressure regulating valve,can make sure the degaser works under optimum condition
3. Main technical parameters
Model | Power/ kW | Impeller speed r/min | Impeller dia./ mm | Weight/ kg | ||
50Hz | 60Hz | 50Hz | 60Hz | |||
JNJ-2.2 | 2.2 | 60 | 70 | 300 | 250 | 200 |
JNJ-5.5 | 5.5 | 60 | 70 | 600 | 520 | 300 |
JNJ-7.5 | 7.5 | 60 | 70 | 800 | 720 | 350 |
JNJ-11 | 11 | 60 | 70 | 1000 | 900 | 400 |
JNJ-15 | 15 | 60 | 70 | 1000 | 1000 | 500 |
